Picking the best sprinkler head for your yard can optimize the health of your plants and trees.

Photo by Victor Furtuna on Unsplash

Choosing the Best Sprinkler Head for Your Landscape Is Important

Current research shows that homeowners can save 50-70% of their water bill by optimizing their sprinkler system and using native plants in landscaping. Using the types of sprinkler heads that match the plants you have, so they get the right amount of water and can absorb it properly, is part of optimizing the sprinkler system.

Too much water and you waste what you paid for. Too little water and your plants die. This includes trees. This article will show you the best kinds of sprinkler heads to use for the types of plants you have.

Lack of Water Kills a Pine Tree

In the middle of my lawn in the condo complex where I used to live stood a tall, attractive, relatively young pine tree. I noticed it shed needles quite a lot, which sometimes indicates a lack of water. Although the lawn under it was quite green, I was worried and mentioned it to our head office. Clearly, trees need more water than do lawns. They brushed it off.

One night we had a windstorm. I heard a big crack and the next morning saw one of the pine tree's branches lying on my roof. I alerted the front office and suggested they take a matching branch off to keep the tree's weight balanced. I also suggested (again) a change in watering. They ignored both suggestions.

Several months later we had another windstorm. This time the other lower branch cracked off, tearing the trunk in half as it fell. The front office hired a logger to take down the pine tree, who noticed that the tree had no sap. Now pine trees are known for sticky sap that clogs up any chainsaw that prunes them. But this tree wasn't being watered properly, although the grass under it was, and its wood was bone dry.

This could be happening to you—to any of the trees, bushes, flowers, or even the lawn in your landscape. You could be watering too much and drowning your plants, or watering too little and drying them out. Attaching the right kinds of sprinkler heads to your irrigation system, then programming them properly on the controller, is one way to make sure the right amount of water reaches your plants.

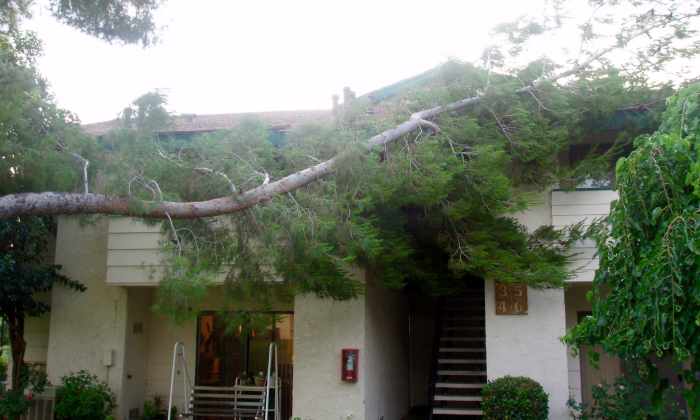

The first limb that broke off fell on top of my condo roof. The second one on the other side of the tree fell on the lawn, taking half the trunk with it.

Susette Horspool, CC-BY-SA 3.0

Utilizing the Water You Pay For

Sprinkler heads are one of three components of a healthy sprinkler system. There are also the types of plants you've included in your landscape, and the type of controller you use and how it's programmed.

Component 1: Select Native Plants

As an example, prickly pear (pictured below) is native to Southern California, and requires little or no water when planted there. When planted in a wetter climate, it requires special soil with great drainage, an extremely sunny spot, and no water once it's established.

Prickly pear is native to Southern California.

Susette Horspool, CC-BY-SA 3.0

Component 2: Utilize an Irrigation Controller

Irrigation controllers let you separate your landscape into different watering sections called "stations." You can then program each station to water at different times for different lengths of time, depending on the sprinkler heads you use.

Component 3: Select Appropriate Sprinkler Heads and Nozzles

The sprinkler heads that are right for your landscape will be those that feed water to your plants in the particular way they like it. Some plants, for example, don't like their leaves wet, so you would not want to use a spray head to water that plant. Instead, you would section off that part of the landscape, install whichever of the sprinkler heads below fit that section, and give it its own watering schedule on the controller.

There are three main classes of sprinkler heads: Spray heads and spray rotors with different size and shape nozzles, bubbler heads, and drip or soaker systems. Each works best for a different type of planting.

For lawns, spray works best because of the even application. For trees and shrubs, bubblers work best because of the pooling effect. For flower beds and many crops (like grapes), drip and soaker hoses work best because of slow application to the plant base. Each type is explained below in more detail.

Spray Heads and Rotors for Lawns

What characterizes spray heads (and rotors) is that they spray water up and outward in an even application. This applies water to the surface of plants, including leaves. Since many types of plants do not like their leaves watered, you would use this type of sprinkler mostly on grass.

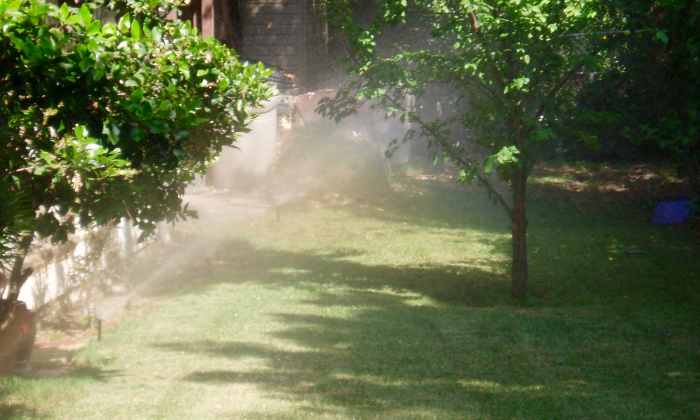

Spray head nozzles in operation. Note the continuous spray that saturates the lawn. This lawn is small and protected, so runoff is not the problem that lawns on a bank would be.

Susette Horspool, CC-BY-SA 3.0

And here is a rotor in action. These are used on bigger lawns and lawns with banks. They rotate from side to side, which gives the soil time to absorb the spray before it comes around again.

Susette Horspool, CC-BY-SA 3.0

Most irrigation systems are equipped with nozzles that rest in the ground and only pop up when activated by the controller. They are used in locations where a lawnmower is likely to damage anything standing higher than the grass level.

Sometimes you'll see spray heads set on permanent risers that lift them higher than normal, so they can spray over a garden area with ground cover. Sometimes they're used for flower beds too, where maintenance is hard to come by.

Spray nozzles come in different sizes and spray patterns. Some spray steadily in a 360-degree circle. You would use those in the middle of a lawn. Those that spray in a 180-degree arc (out of only one side) are for the edges of lawns. And those that spray in only a quarter of a circle (90-degree arc) or less are for corners.

For the smaller types, you will periodically need to make sure they are spraying in the right direction, so you don't waste water spraying a sidewalk or driveway (called "arc misalignment"). You can easily adjust them by hand.

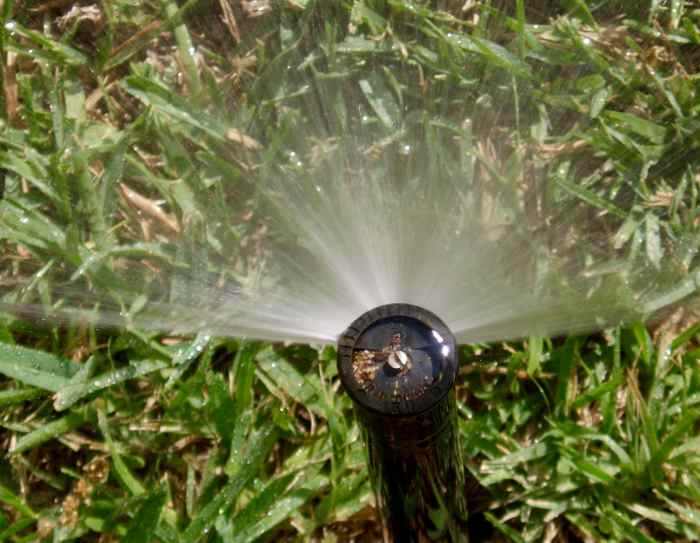

Here's a spray head nozzle up close. This nozzle is located on the side of the lawn and has a 180 degree arc.

Susette Horspool, CC-BY-SA 3.0

Many of California's soils have heavy clay content, which makes them absorb water slowly. The standard spray head gives out too much water for these types of soils. It pumps water constantly, not giving it time to soak in, so water very quickly starts to run off the top of the soil into the storm drains. That is wasted water.

It also pumps water up into the air, which allows for easy evaporation by the sun and for any wind to carry it off. That also is wasted water. The newest nozzles make allowances for both of these situations.

The newest types of spray nozzles on the market today, that water suppliers are paying the most attention to (and giving rebates for), are the rotary stream (or multi-stream) nozzle and the precision nozzle.

The spray of a rotary stream nozzle looks like fingers of water spraying out, rotating slowly from side to side to cover an area, giving time for the water to soak down into the soil.

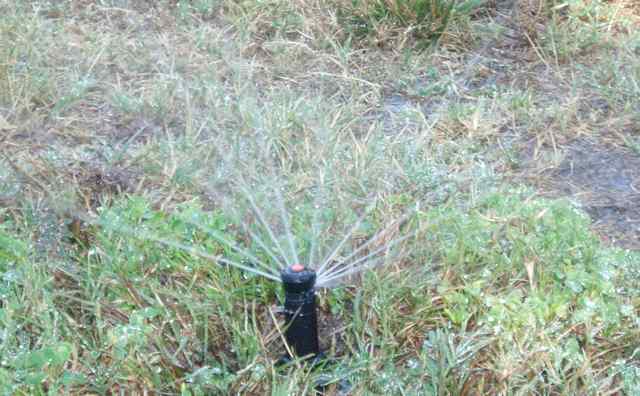

Multi-stream rotor - Be careful that you have good water filters with nozzles like these. They can save you water, but clog easily.

Susette Horspool, CC-BY-SA-3.0

The precision nozzle is built so the water slows down and becomes slightly heavier before spraying out. This cuts down on evaporation and wind-blow, saving the 30% of water that would otherwise be lost. You would use the rotating nozzle for heavy soils and the precision nozzle where wind and/or sun are strong.

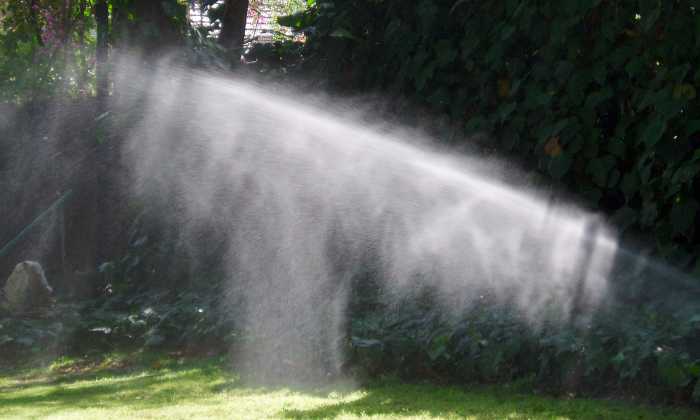

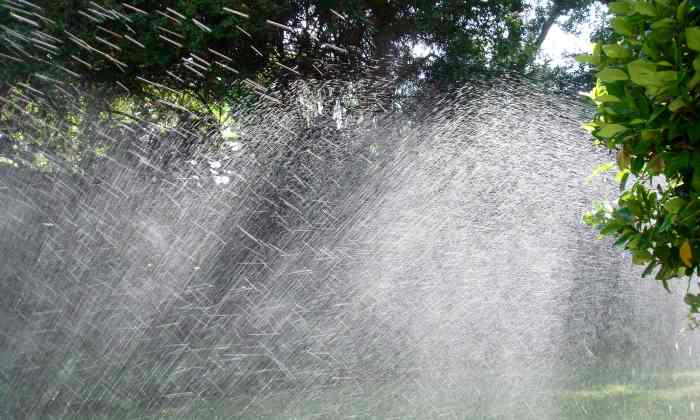

This spray comes from a mixture of regular spray nozzles and precision nozzles. Note how some of the spray is light and air bound, whereas other spray is heavier, sinking right down to the ground.

Susette Horspool, CC-BY-SA 3.0

Rotors are sprayers with a very narrow outlet that emit water under high pressure, sending it in jets out 18-55 feet, depending on the size. Rotors rotate back and forth to give soil plenty of time to absorb the water before its rotation brings the jet back.

Most rotors are driven by gears and come in kits with several sizes of nozzles. They need a higher water pressure than spray heads to operate properly. Whereas spray heads need 20-30 psi (pressure per square inch), rotors vary depending on how far you want them to shoot. If you are watering a 30-foot length, you'll need at least 30 psi coming through the pipes. If a 55-foot length, you'll need at least 55 psi.

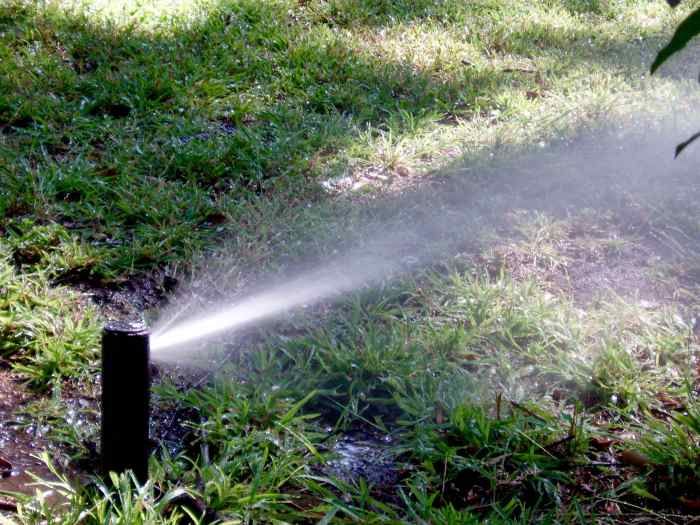

Here's a rotor up close. The rotary nozzle is used for bigger lawns and golf courses. It's stream is stronger and flows a longer distance than the spray head.

Susette Horspool, CC-BY-SA 3.0

Bubbler Nozzles for Bushes and Trees

Bubblers are nozzles that bubble over in place, rather than spraying outward to cover a wide area. You place bubbler nozzles near trees and bushes to flood the ground around them. If my pine tree had been watered with a bubbler head, on a separate station with the other trees on the property, it would have been healthy and strong.

Bubblers emit water at a slower speed than do sprayers and can be left to run longer. The intention is to create a pooling of water that sinks down deep into the soil around the tree. Then you leave a long time of not watering, so roots have to search for water, growing deeper as the soil dries on top. Bubbler systems are not regulated by water suppliers, hence you can run them for as long as a tree needs it.

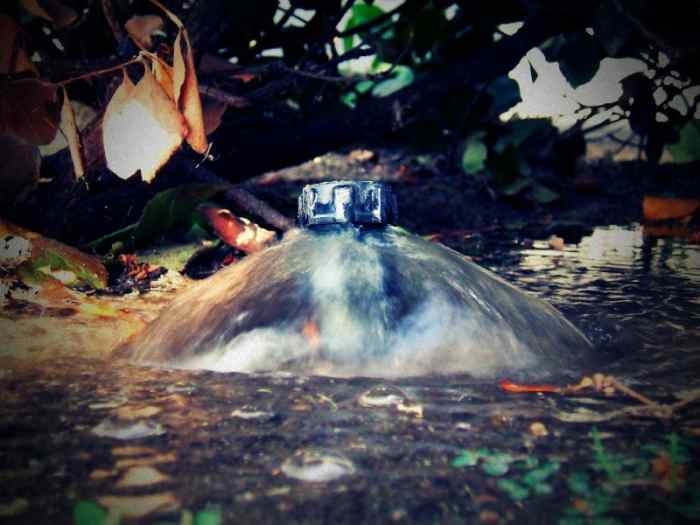

Bubbler Heads are used mainly for trees, especially where runoff is a concern. They should be placed in a trough dug around the tree, with the tree on a little rise in the middle so its base doesn't get wet while the water soaks into the soil.

Daniel R Blume, Public Domain, via Flickr

Drip Nozzles and Soaker Hoses for Gardens

Drip and soaker systems are characterized by long hoses that stretch the length of a flower bed or crop row, or that wind around inside of the bed. These systems "leak" water, compared to spray heads. They require a long time of watering to produce the amount desired, but also make it easy for the water to absorb into the soil.

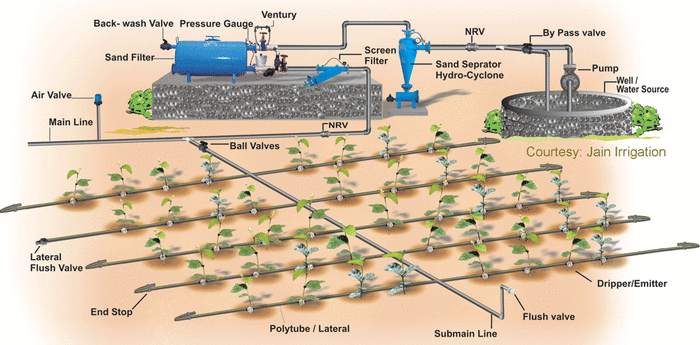

Drip irrigation system and its parts.

Public Domain via Wikimedia Commons

Because there is no runoff and no problem with evaporation or wind-blow, you can save a tremendous amount of water with a drip or soaker system. They are a little more vulnerable to blockage than spray heads, but careful maintenance will make it worthwhile using them.

In addition, plants are healthier because of the lack of water on their leaves. If it doesn't rain in your area, you can still water leaves on occasion to remove dust and insect debris, but be careful. Water left on leaves in the hot sun can cause them to "boil," and water left on leaves for a long time (especially on a cold night) can cause the leaves to rot.

Drip systems have mini-hoses extending from the main hose that are capped by an emitter. Each mini-hose is directed toward the base of a plant, where they dribble water until the ground around it is soaked. If your irrigation system is already set up to use spray heads, you can replace each spray head with a drip nozzle that looks like octopus arms. Each arm can be pointed in a different direction.

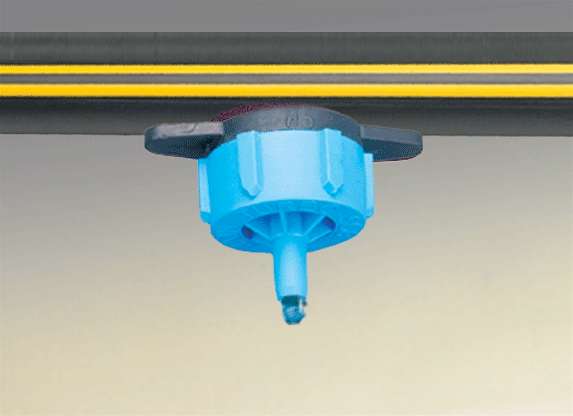

A drip emitter up close. Each emitter is screwed onto the main hose or the end of a short hose that leads directly to a plant. Soaker hoses don't have emitters, just holes.

Jisl, CC-BY-SA-3.0, via Wikimedia Commons

A soaker hose is made of canvas to allow water to leak through the surface, or of plastic with tiny holes spaced regularly down its length. Using a soaker hose down a row of crops allows you to water the roots without watering the surrounding soil, which also helps to minimize the growth of weeds.

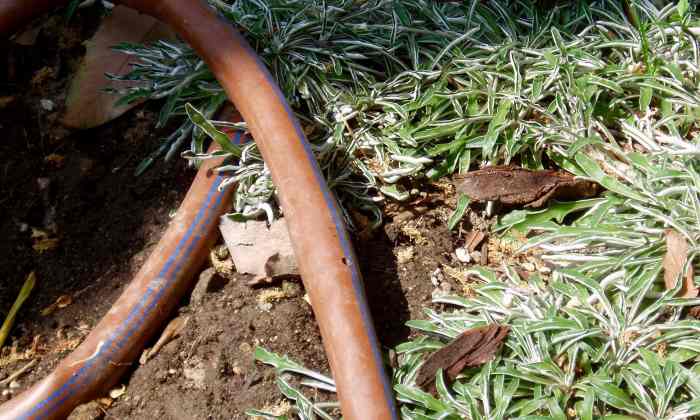

This soaker hose is being used to water a patch of ground cover surrounding a few drought tolerant flowering plants. Notice the hole in the center hose.

Susette Horspool, CC-BY-SA 3.0

Notes & Cautions

If you're going to have a mix of sprinkler heads watering your landscape, you'll need to give each kind its own schedule. That's what an irrigation controller's "stations" are for—you assign which sprinkler heads go to which station and then program the station with the watering schedule you want.
Also note that when you landscape with plants native to your area they won't need much, if any, water at all. Some water suppliers offer contests or rebates for changing lawns to native plants.
Whatever system or combination of systems you end up using, if watering is appropriate to the plant type and the local weather patterns, you will end up with healthy plants and (usually) substantially reduced water bills.
Of course, it's important to check for leaks regularly and get them fixed as well.

This content is accurate and true to the best of the author's knowledge and is not meant to substitute for formal and individualized advice from a qualified professional.

Questions & Answers

Question: How do I lay out a watering system with irregular planting schemes, with some new trees?

Answer: Use bubblers for the new trees and put them on their own station, so they can be programmed differently from the rest.
